Cam without catch, Steel zinc-plated; 1000-203

https://www.emka.com/products/1000-203 https://www.emka.com/web/image/product.template/59257/image_1920?unique=54dfe28

Offset h = 0 mm


    This combination does not exist.

    Inside the sealing


    Product information:

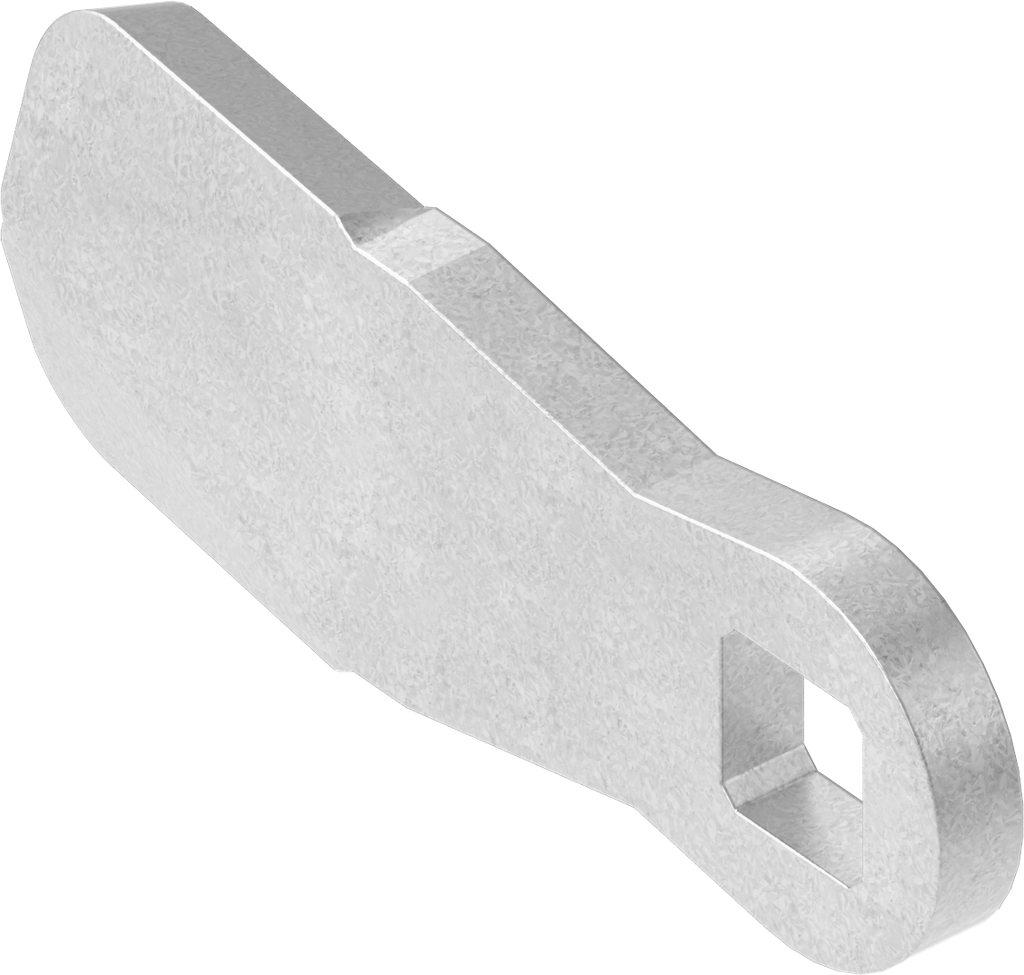

    Cam without catch

    Internal Reference: 1000-203
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Dimension A: 23 mm
    Axis: Steel and zinc die combined
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: straight
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    Closure Type: HVACR compression latch
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Quarter turn accessories
    Adapter
    Shaft
    HVACR

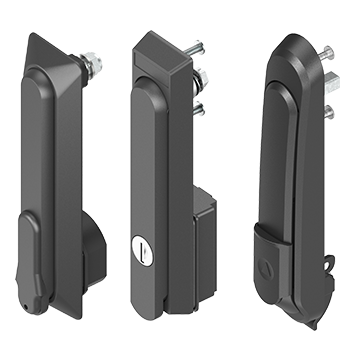

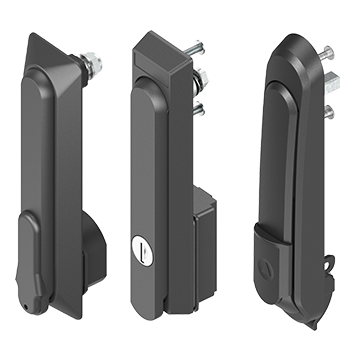

    Swinghandle, Lifthandle
    Locking point

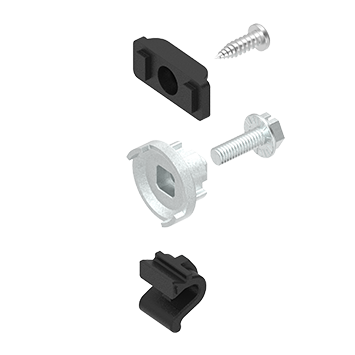

    Fixing material for swinghandle
