Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated

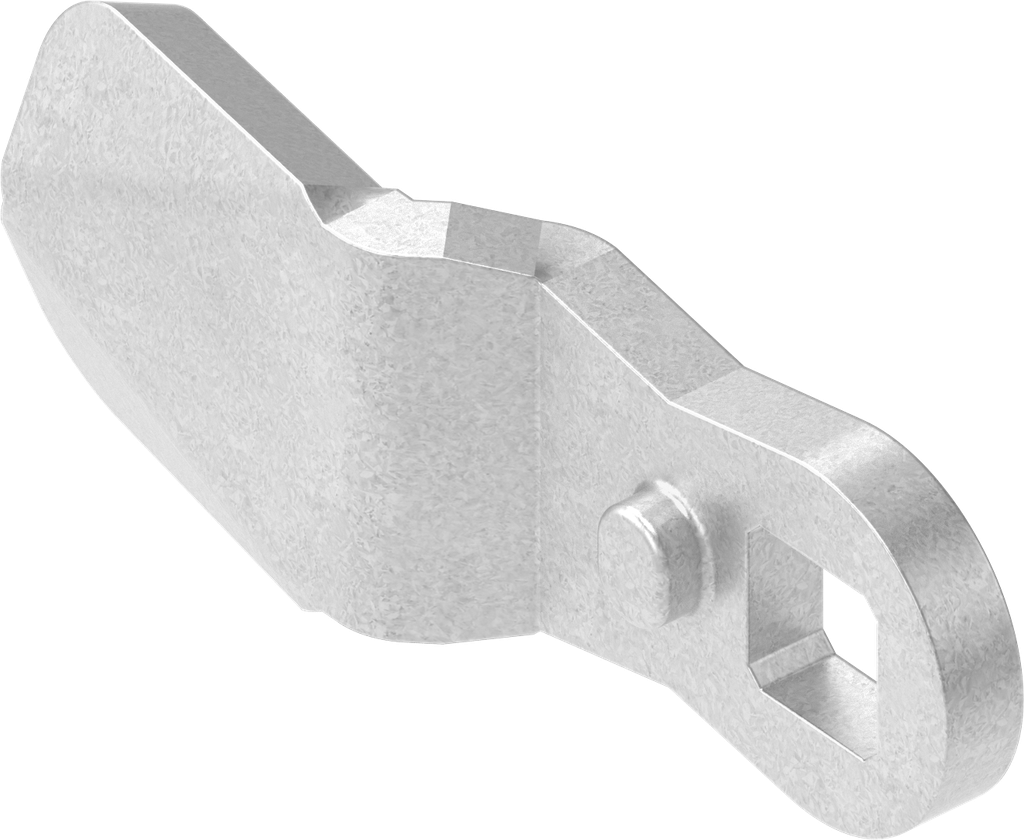

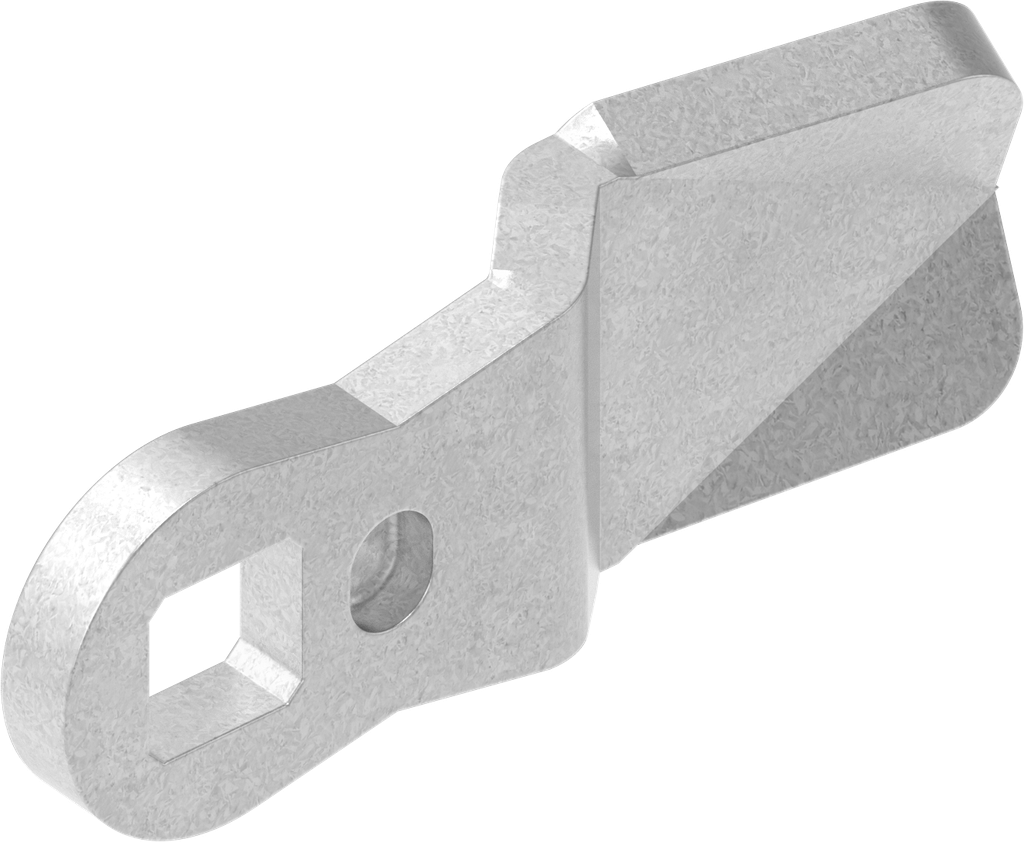

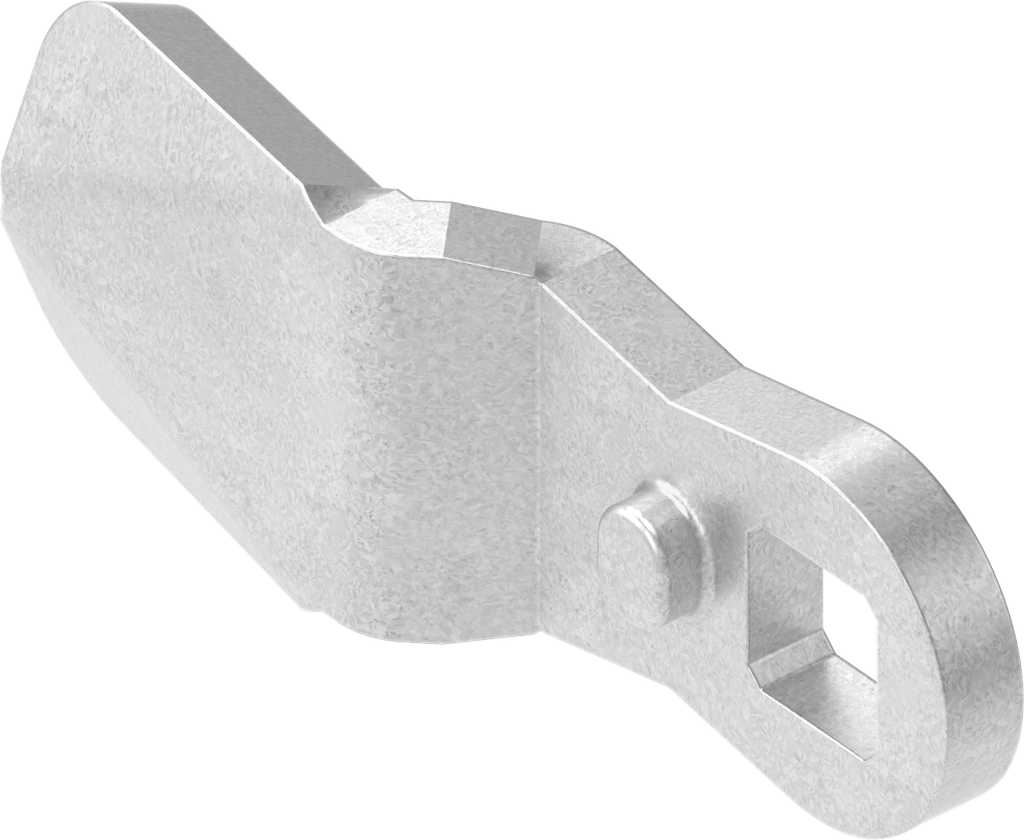

Cam, Steel zinc-plated; 1000-20

https://www.emka.com/products/1000-20 https://www.emka.com/web/image/product.template/59097/image_1920?unique=cdb4063

Offset h = -5 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-20
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3ZD-240
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -5 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Quarter turn accessories
    Rod control
    Adapter
    Locking point
    Other latch
    Swinghandle, Lifthandle

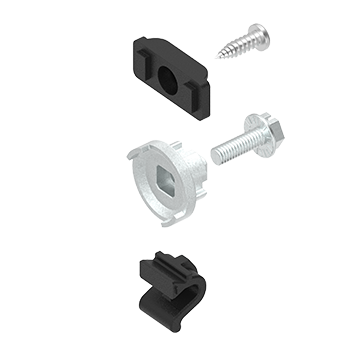

    Fixing material for swinghandle
