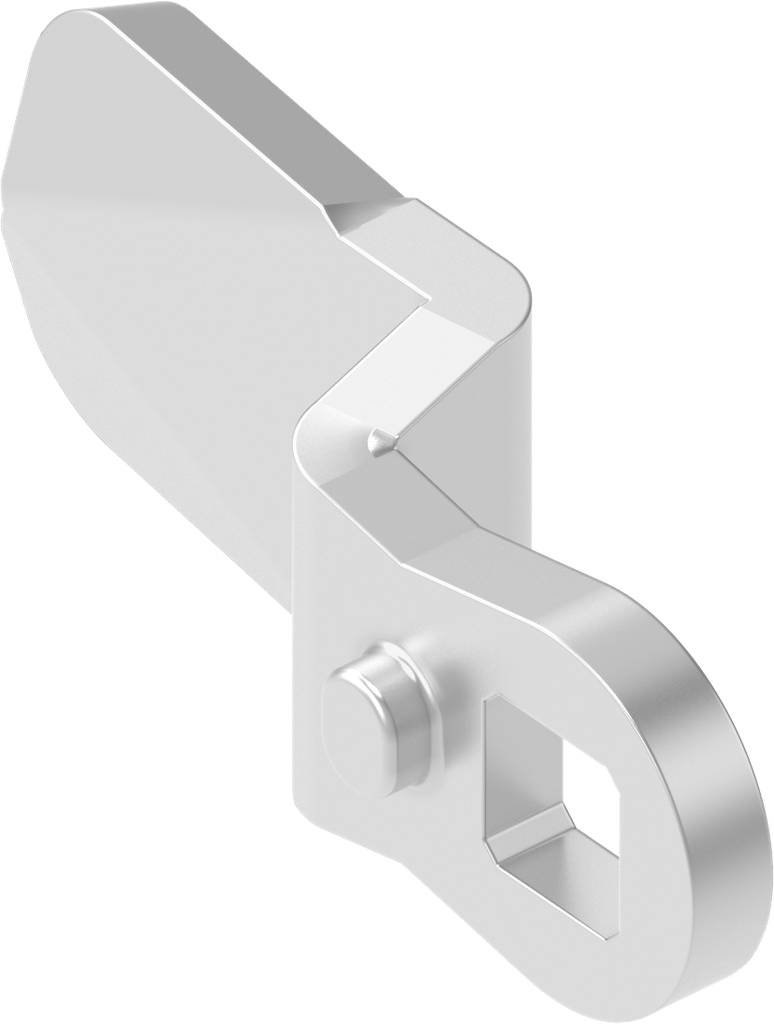

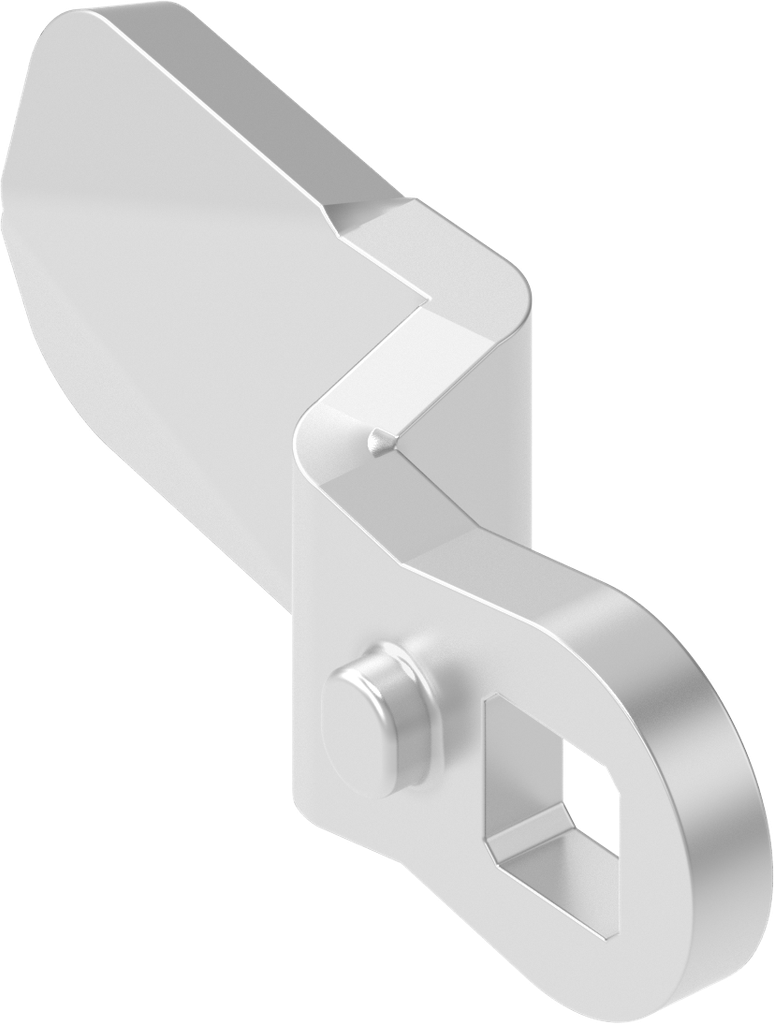

Cam, Stainless steel AISI 316; 1000-180-PD

https://www.emka.com/products/1000-180-pd https://www.emka.com/web/image/product.template/59256/image_1920?unique=eb06bd4

Offset h = 10 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-180-PD
    Product Type: Cam
    Material: Stainless steel AISI 316
    Program: 1000
    Catalog sheet: 3ZD-240
    Dimension A: 33 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 10 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
