Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated

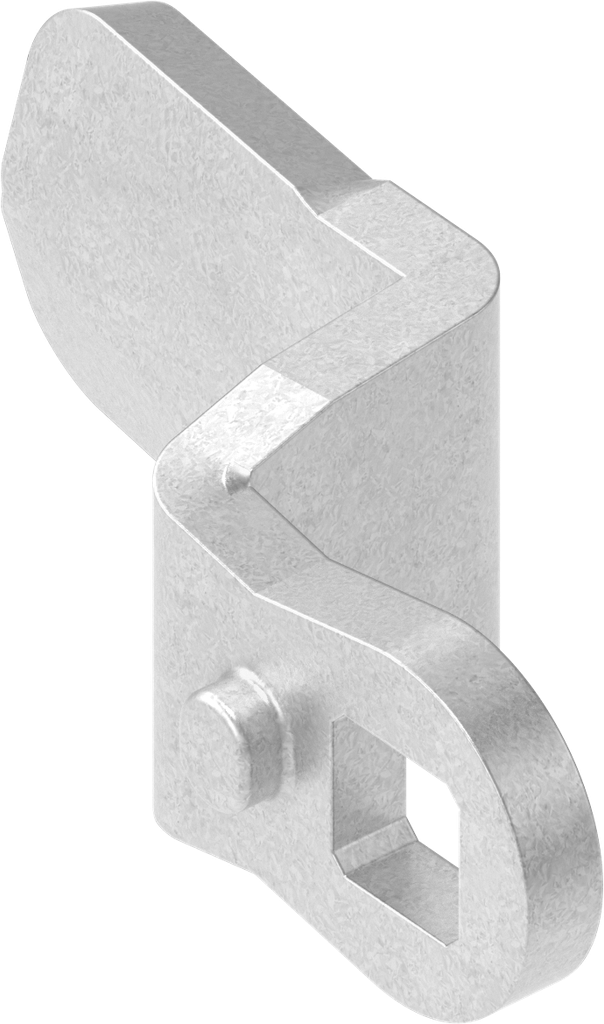

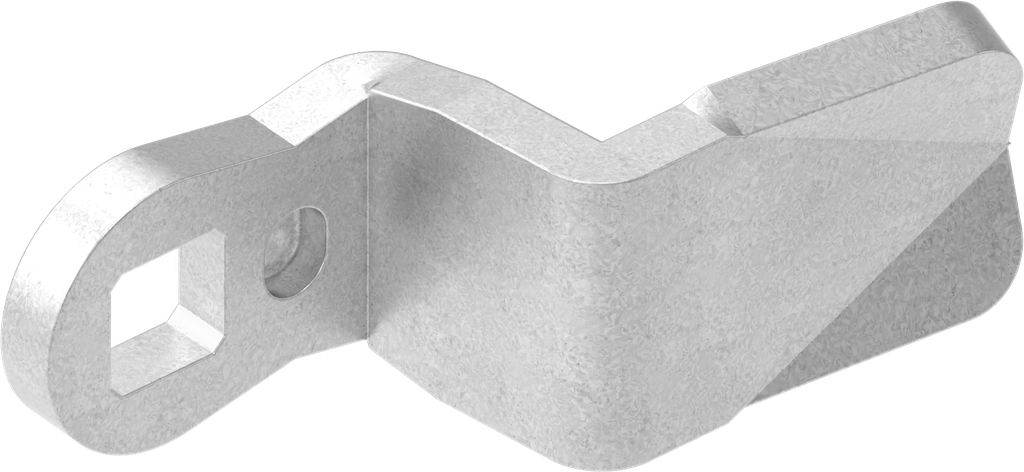

Cam, Steel zinc-plated; 1000-11

https://www.emka.com/products/1000-11 https://www.emka.com/web/image/product.template/59086/image_1920?unique=55d7892

Offset h = 17 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-11
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3ZD-240
    Dimension A: 40 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 17 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Quarter turn accessories
    Rod control
    Adapter
    Locking point

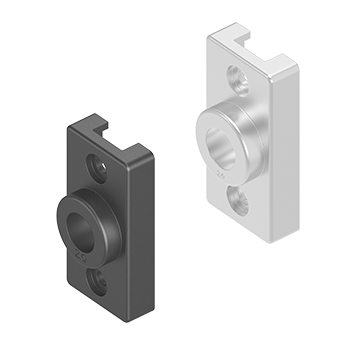

    Bearing bush
    Other latch

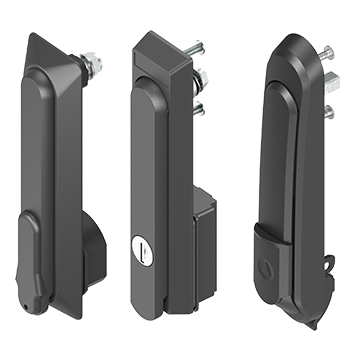

    Swinghandle, Lifthandle
