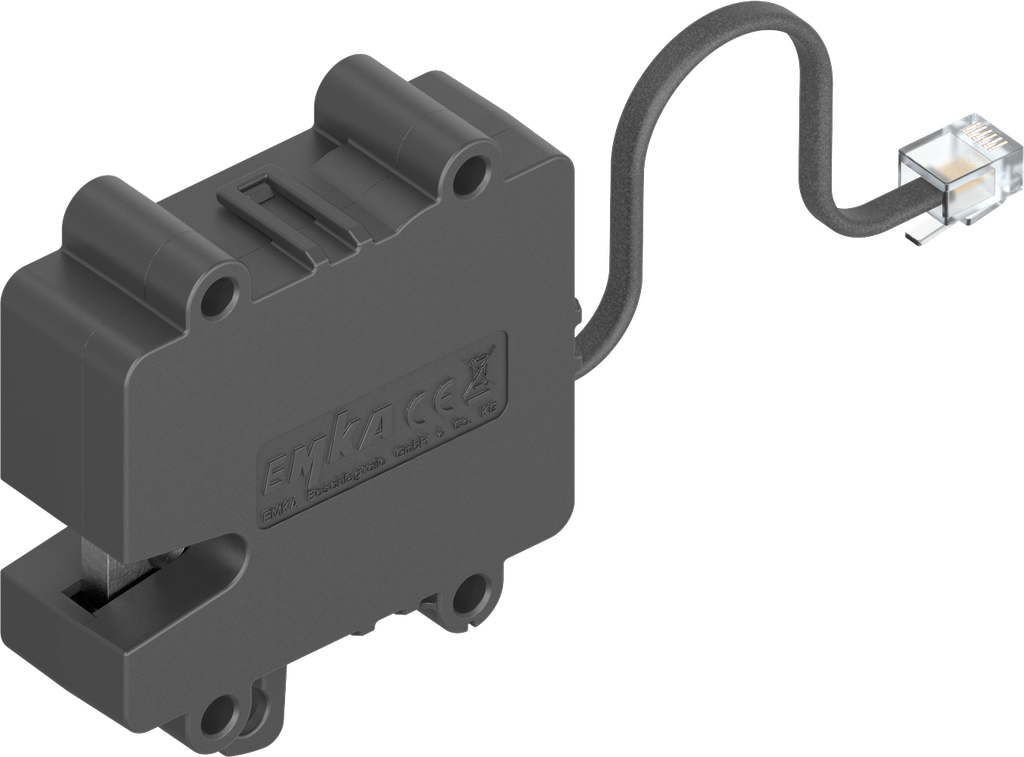

Einpunktverriegelung mit Notöffnung, Basic delayed Re-Lock, Polyamid GF schwarz; 3000-U301-02

The single-point latch is used in special application areas as locking system which is invisible from the outside.
The following versions are available:
– Basic = Latch opens by switching on the power supply and locks as soon as the door is closed again.
– Basic delayed Re-Lock = Latch opens by switching on the power supply and remains in the position "open" as long as the power supply is applied.
– Energy store = Latch opens when switching off of the power supply (alternative to magnetic locks).
– Battery backup = Latch is permanently powered and opened via electrical pulse; protection type IP 56.

• Broad supply voltage range of 9 ... 32 V
• Potential-free switch for remote monitoring of the state/door state
• Emergency opening in case of power failure possible via Bowden cable
• Connection possible to Locking Unit 3000-U32-x or Access Unit 3000-U47-x; Adapter cable optional
• ATEX / UL-Ex certification

1 = Catch or locking bolt
2 = Lever for mechanical unlocking , e.g. Bowden cable
3 = Bowden cable mounting

4 = Contact
5 = V -
6 = V +
7 = Contact

8 = V -
9 = V -
10 = V -
11 = Release +
12 = Open collector output
13 = V +

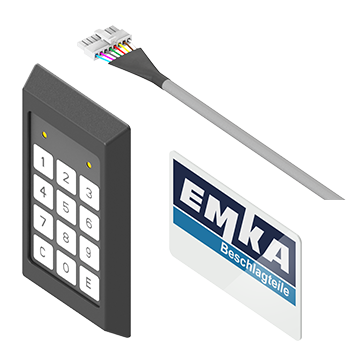

Pro Control Unit Wireless max. 64 Locking Units ≘ max. 512 Einpunktverriegelungen Tastatur / Kartenleser mit Access Unit optional
