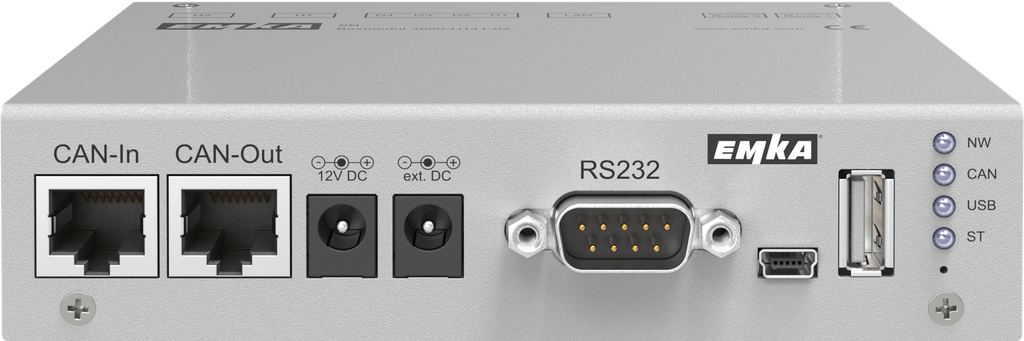

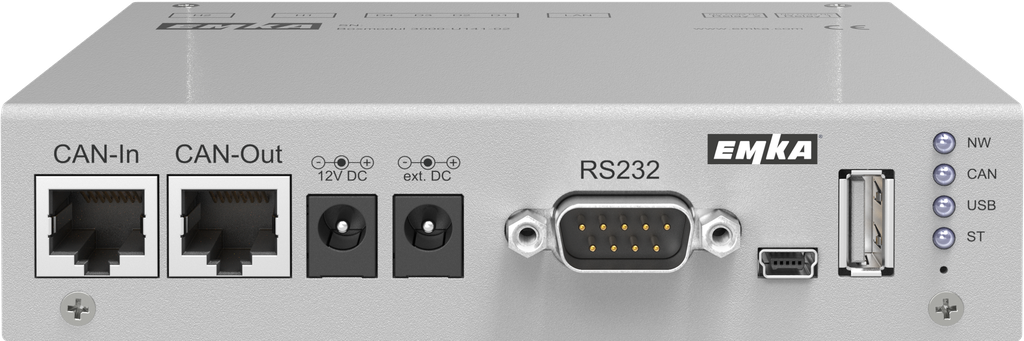

Control Unit Wireless; 3000-U141-02

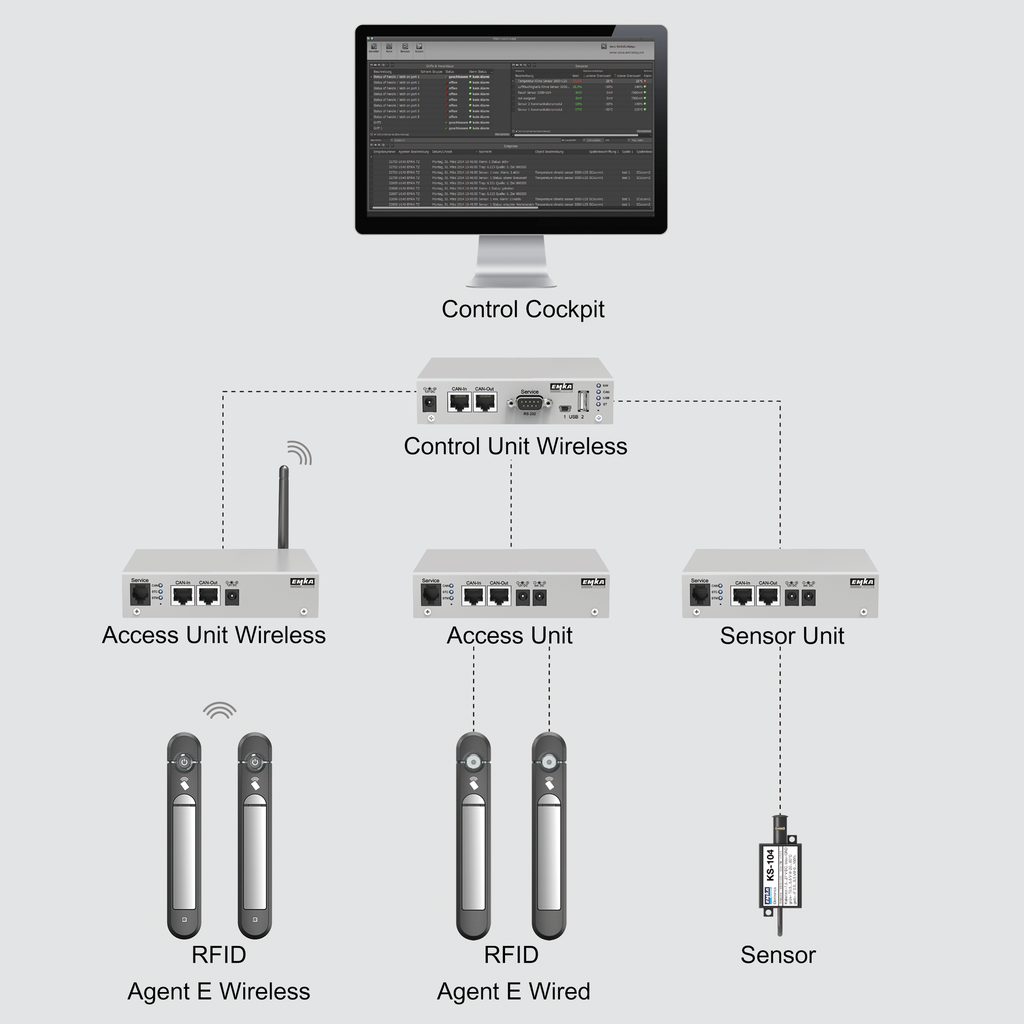

• Central control unit of the EMKA rack management system wired an wireless systems
• Configuration and control of all connected units via the network interface with a standard web browser or via the EMKA Control Cockpit software
• Fail-safe and tamper-proof logging of all events in the system with real-time clock and additional memory
• Time synchronisation via NTP server

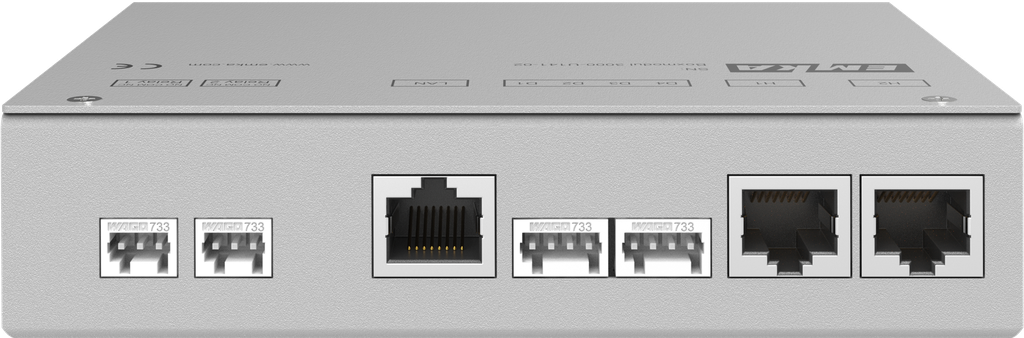

• Two ports for different alarm states at the rear side of the housing
• Simple integration of the system into superordinate management systems by the transmission protocol SNMP
• Redundant power supply possible


Power supply: 12 ... 24 VDC, 325 mA
relay outputs: 2 (30 VDC, max. 1.0 A; 48 VAC, max. 0.5 A)
Interfaces: serial RS 232C interface (front side)
Network interface: Ethernet, 100 Mbit, RJ45 (rear side)
Communication protocols: SNMP 1.0 and 2c
CAN bus ports: 2
Operating temperature: +5 ... +45 °C
Dimensions (L x B x H): 123 x 140 x 33 mm
Scope of delivery: 2 terminating resistors; assembly bracket
