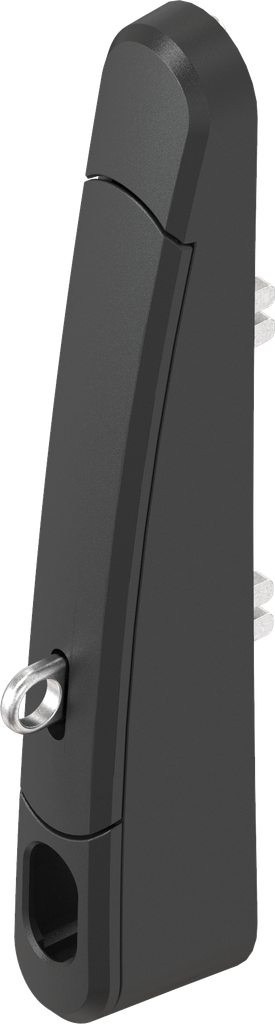

Hebelgriff für Vorhangschloss für schmalen Verkantungsraum, Polyamid GF schwarz; 1390-U4

• Bi-directional lifthandle
• Variable positioning of the rods depending on hinge fixing
• Small cut out due to outside handle mechanism
• Innovative new and well-priced technology
• Attractive design
• Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm
• Patented

Rod movement is bi-directional

Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10 The values for dimension A are different for other seals.
Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used.

① = Locking type
② = Without seal
③ = With seal
④ = Seal example: 1011-10
⑤ = Seal and seal piece with "bulge" are not used for this assembly
⑥ = Variable rod control

Der Hebelgriff ist auch für Bausteine mit Profil-Halbzylinder, Rundzylinder und Betätigungen geeignet
