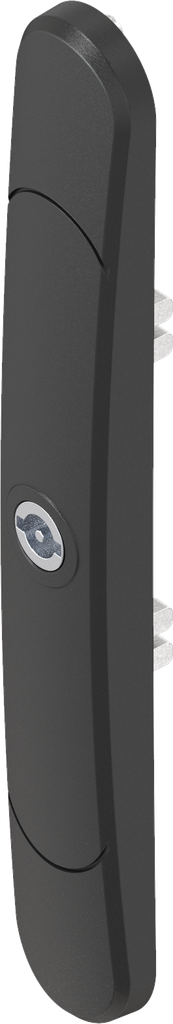

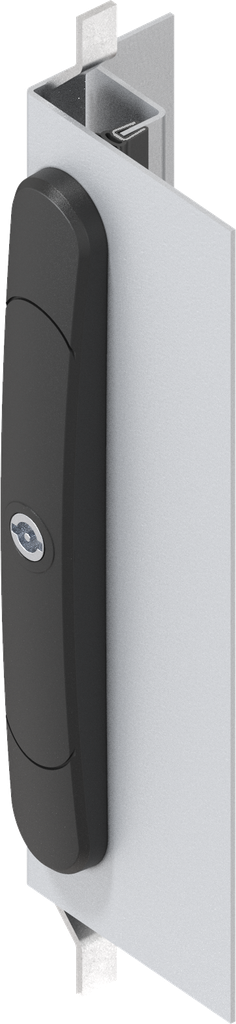

Schlüsselschild mit Doppelbart 3 für schmalen Verkantungsraum, Polyamid GF schwarz; 1390-U38

• Bi-directional escutcheon
• Variable positioning of the rods depending on hinge fixing
• Small cut out due to outside mechanics
• Innovative new and well-priced technology
• Attractive design
• Larger clearance due ro narrow bending 33 x 25 mm or 37 x 25 mm
• Patented

Rod movement is bi-directional

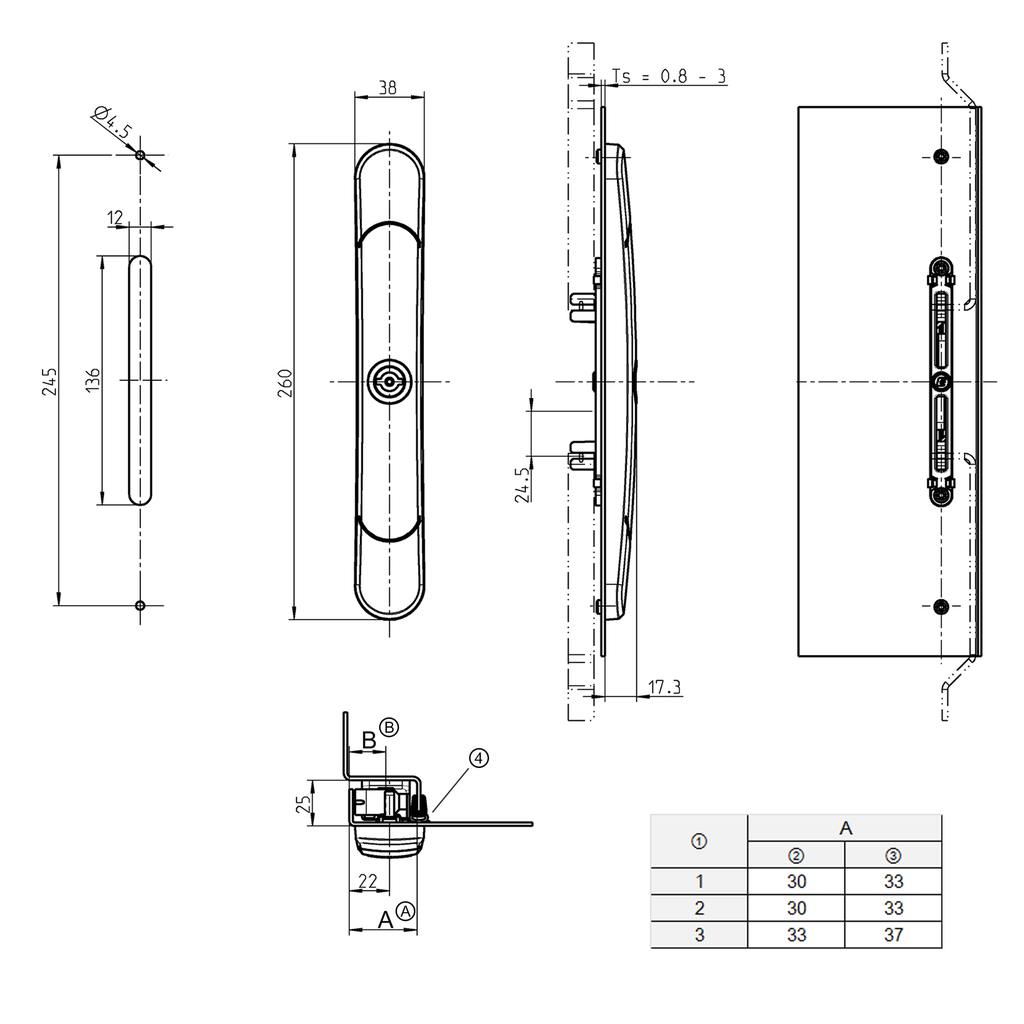

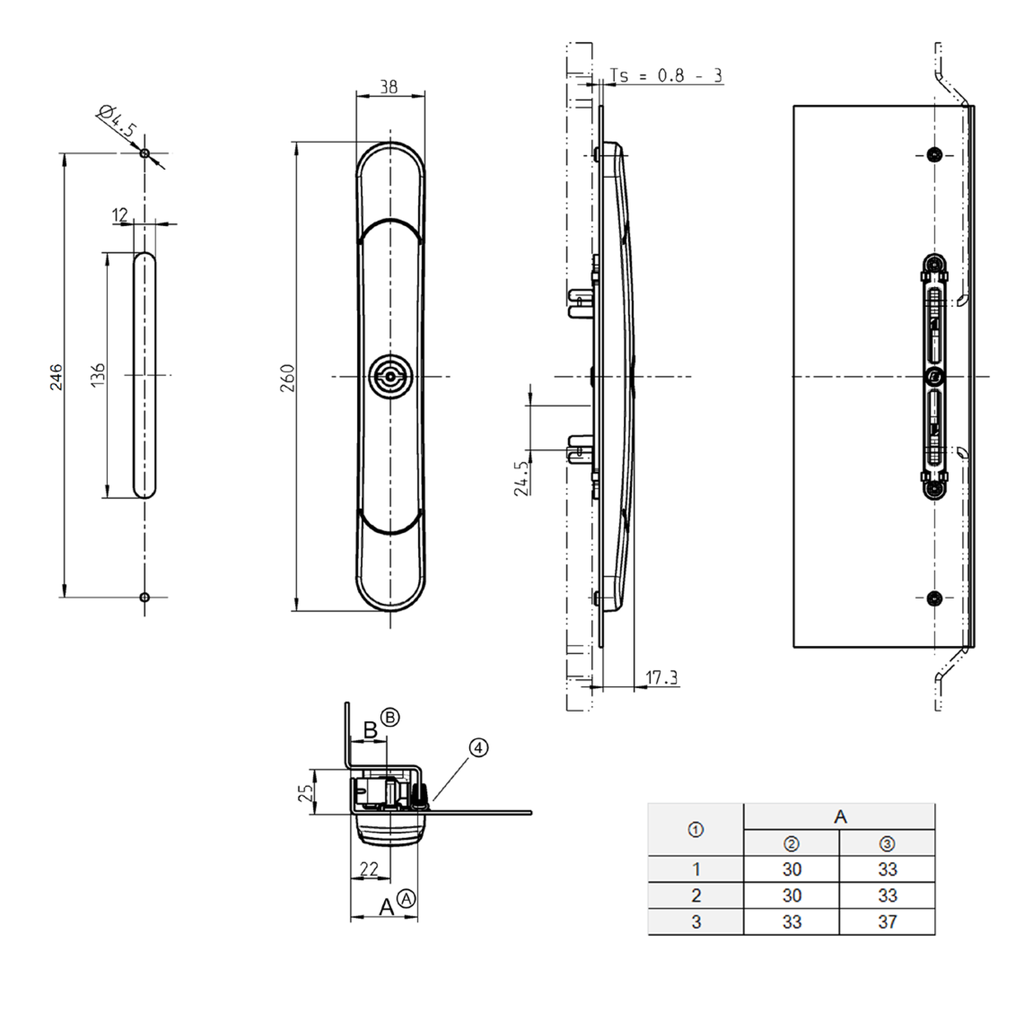

Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10 The values for dimension A are different for other seals.
Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used

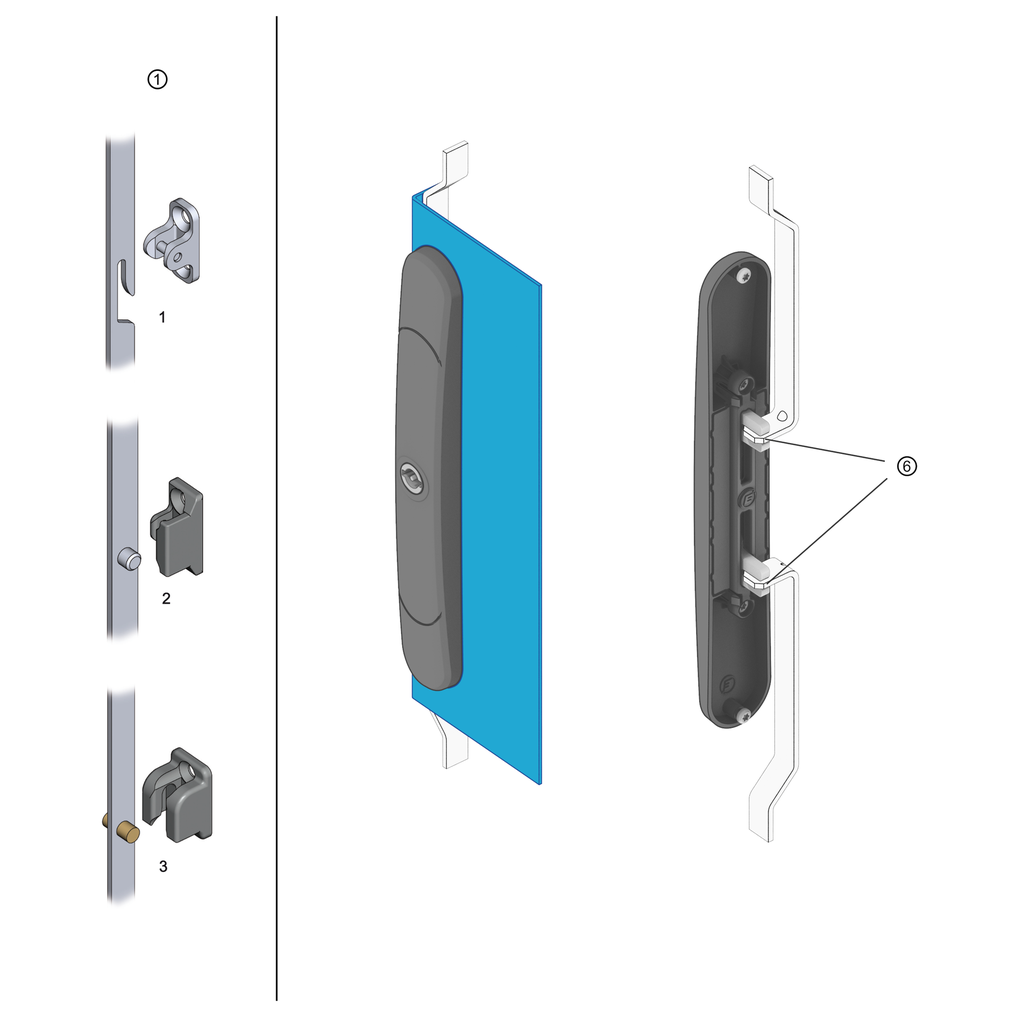

① = Locking type
② = Without seal
③ = With seal
④ = Seal example 1011-10
⑥ = Variable rod control
