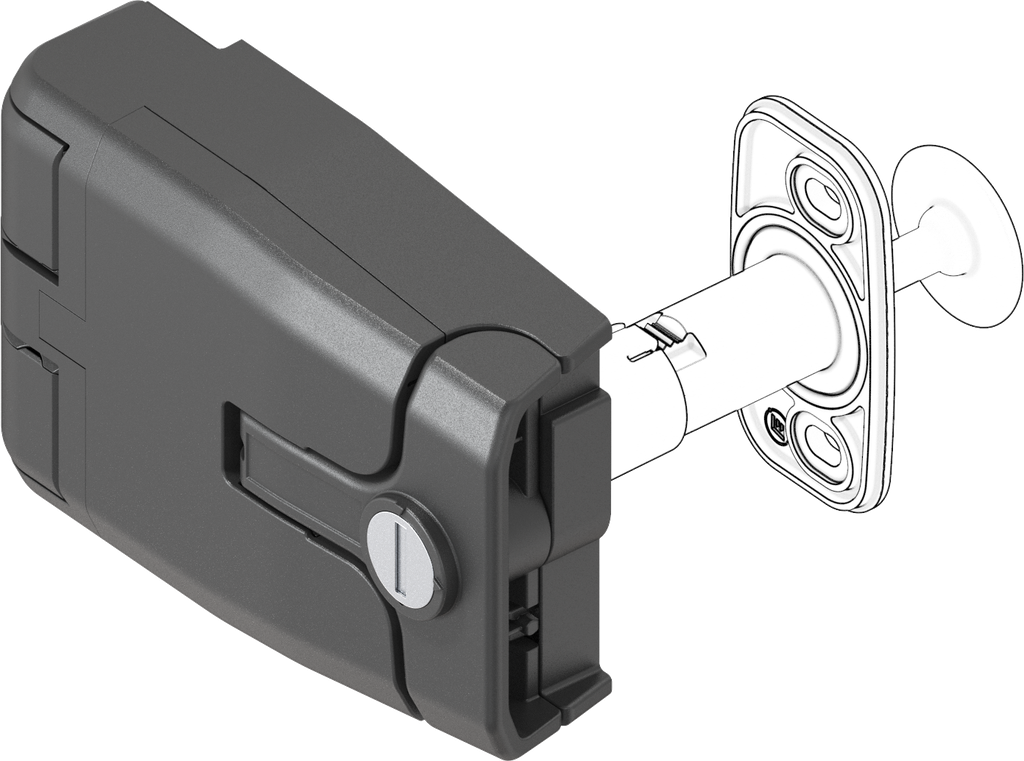

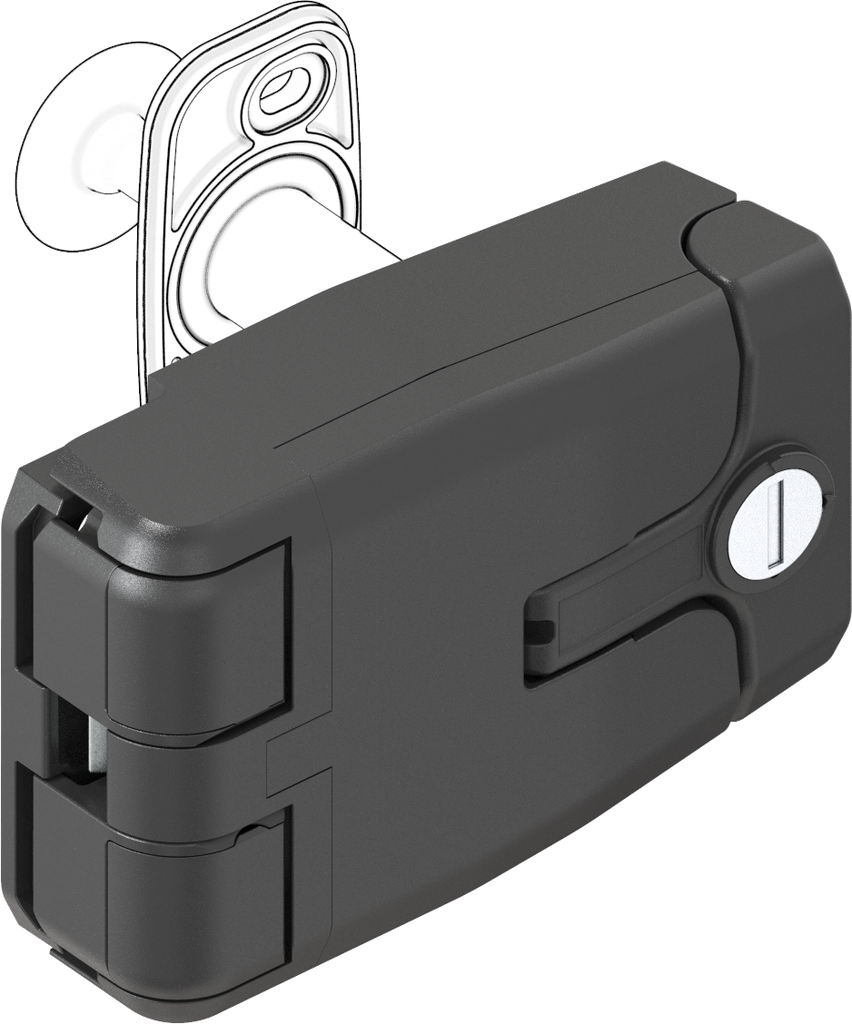

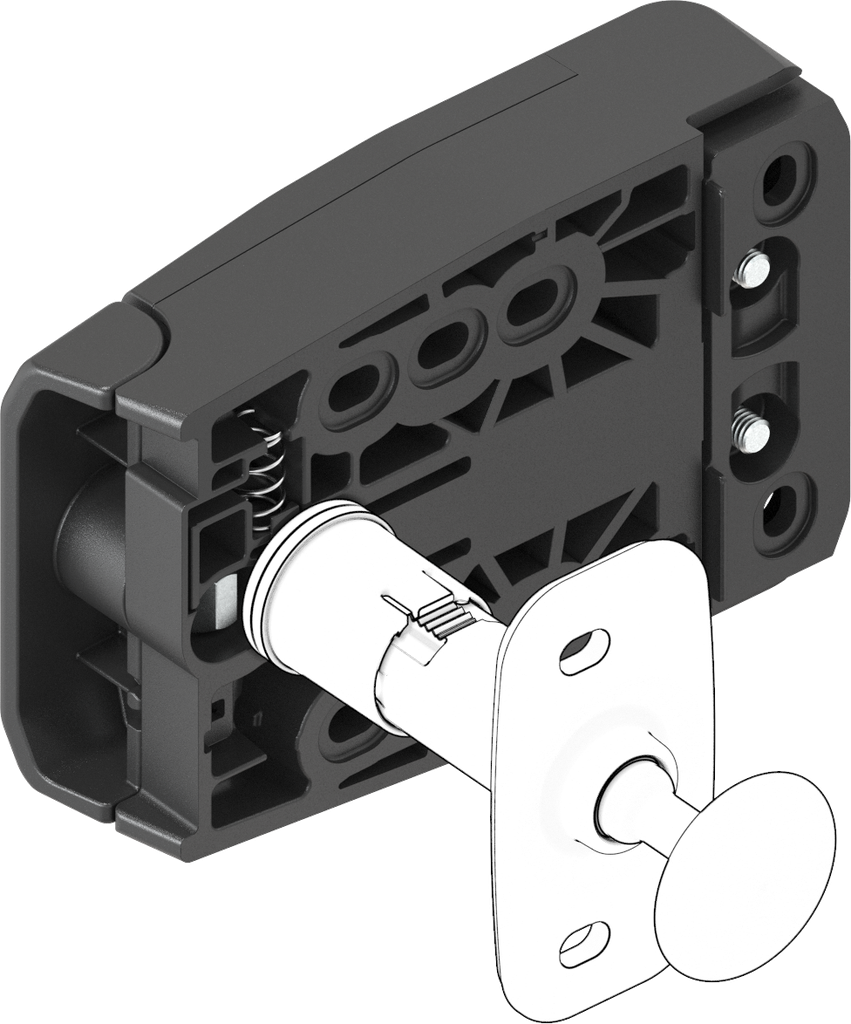

Verschluss-Scharnier mit Druckentlastung Rundzylinder unterschiedliche Schließung, Polyamid GF schwarz; 1091-U199

• The contact pressure of the closed door can be adjusted by 3 mm during operation
• Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force

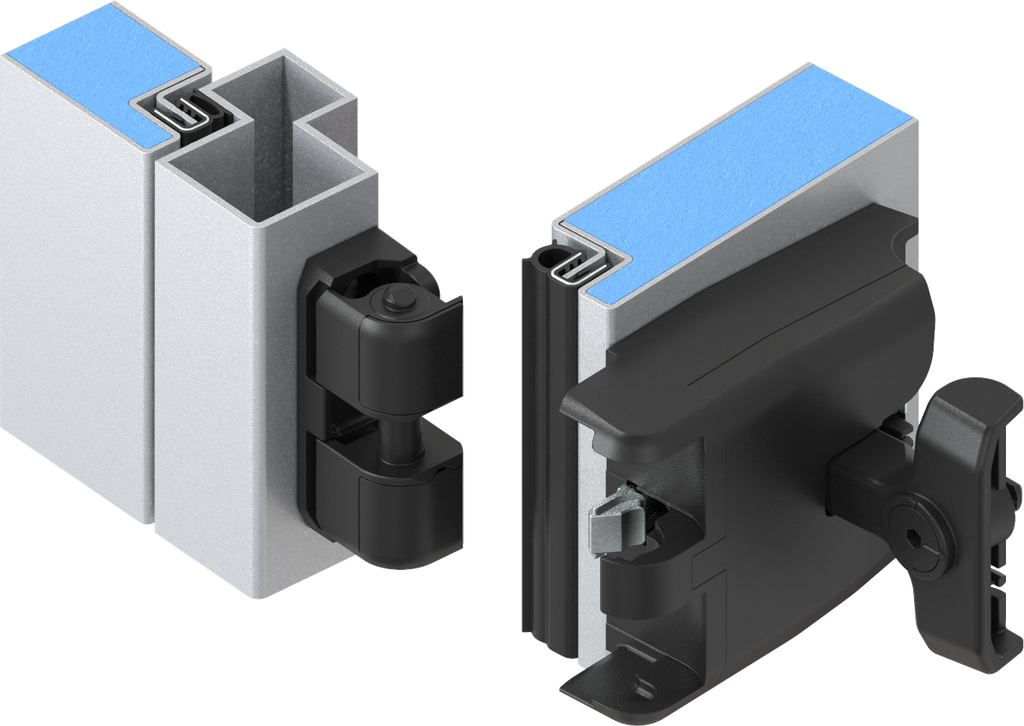

• The door / panel can be removed by unlatching the handles on both sides
• 3D adjustable (tolerance compensation)
• Latch-Hinge can be mounted as one piece with the door / panel in place
• Right or left hinged

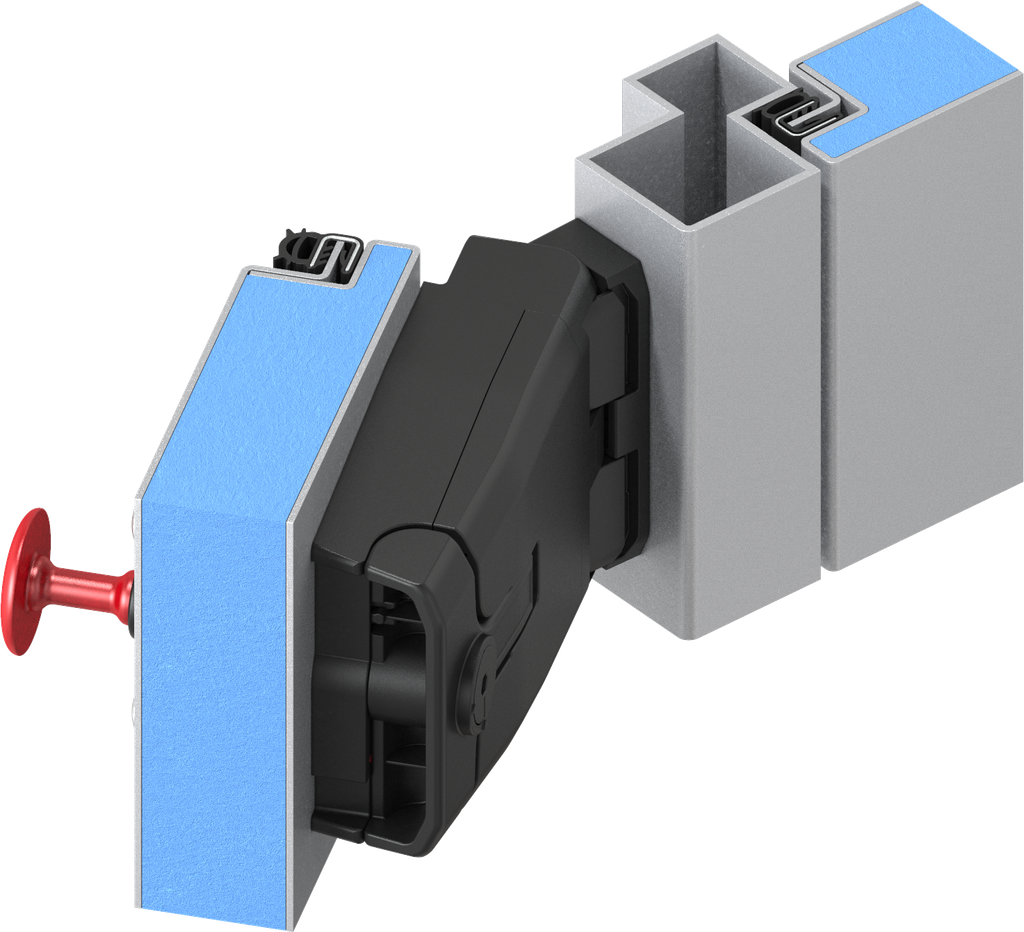

• Hinge 180° opening angle
• ATEX version available on request

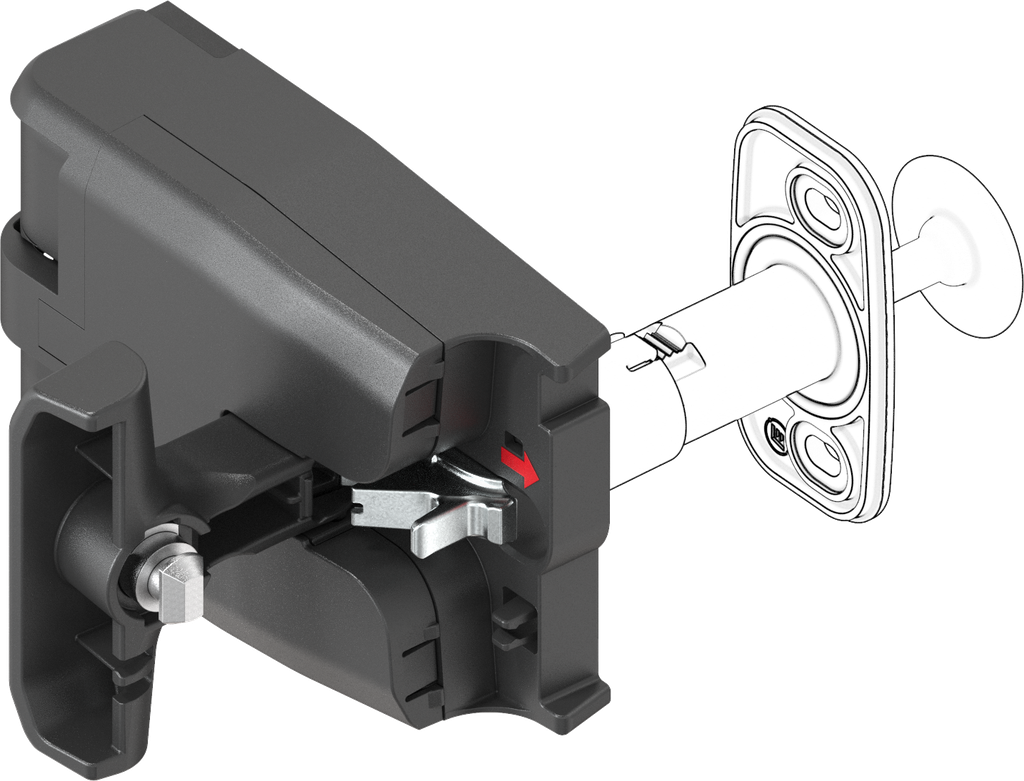

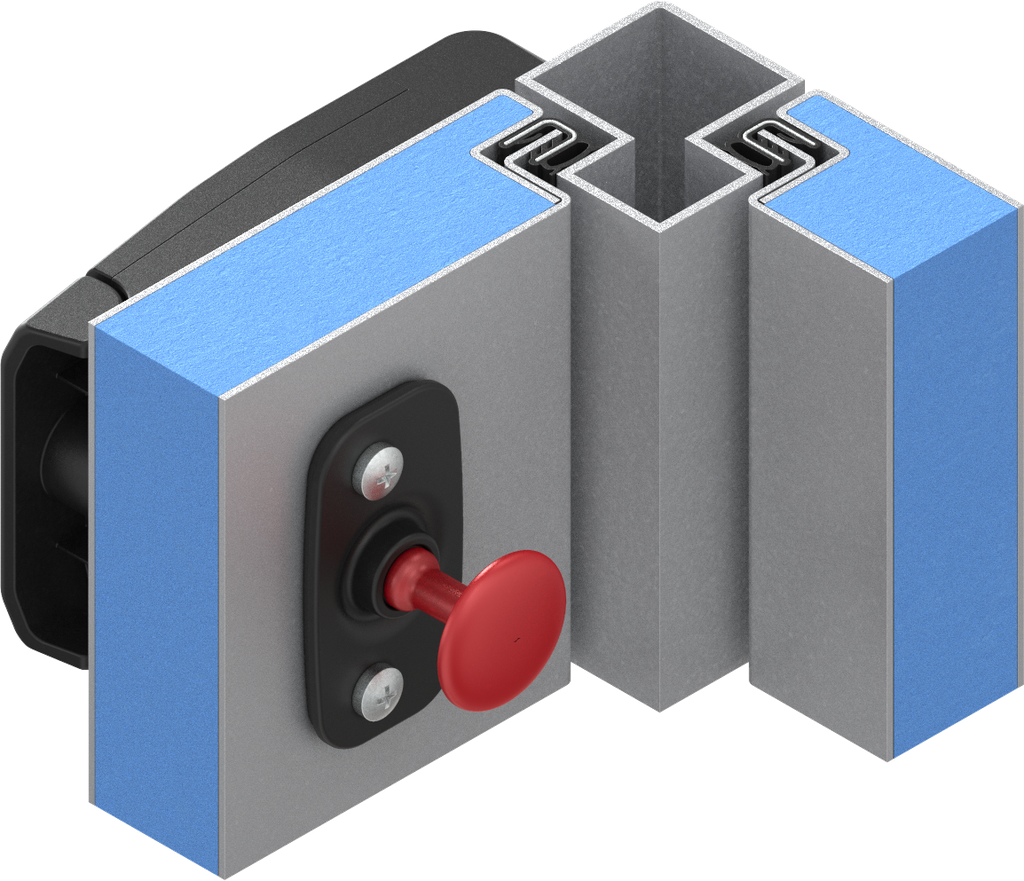

Use latch-hinge with pressure relief 1x per locking side

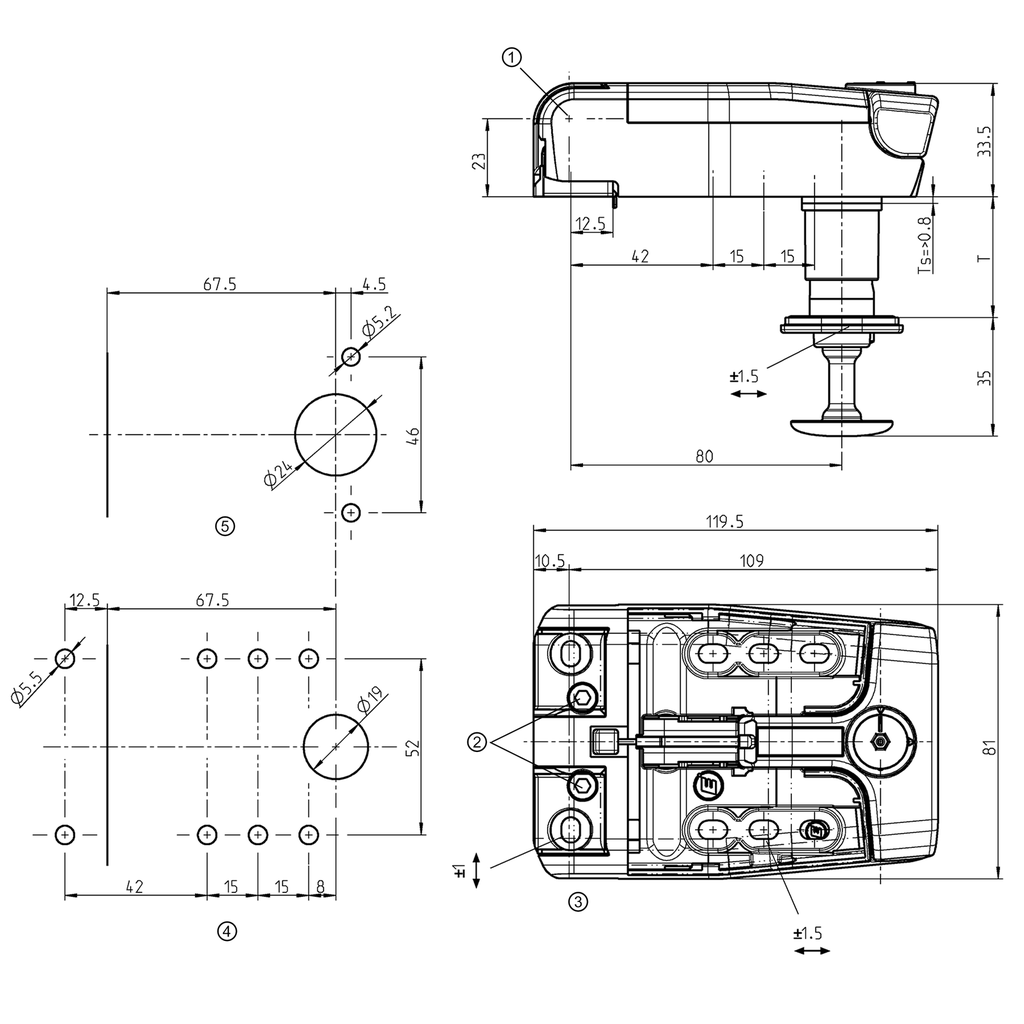

① = Centre of rotation

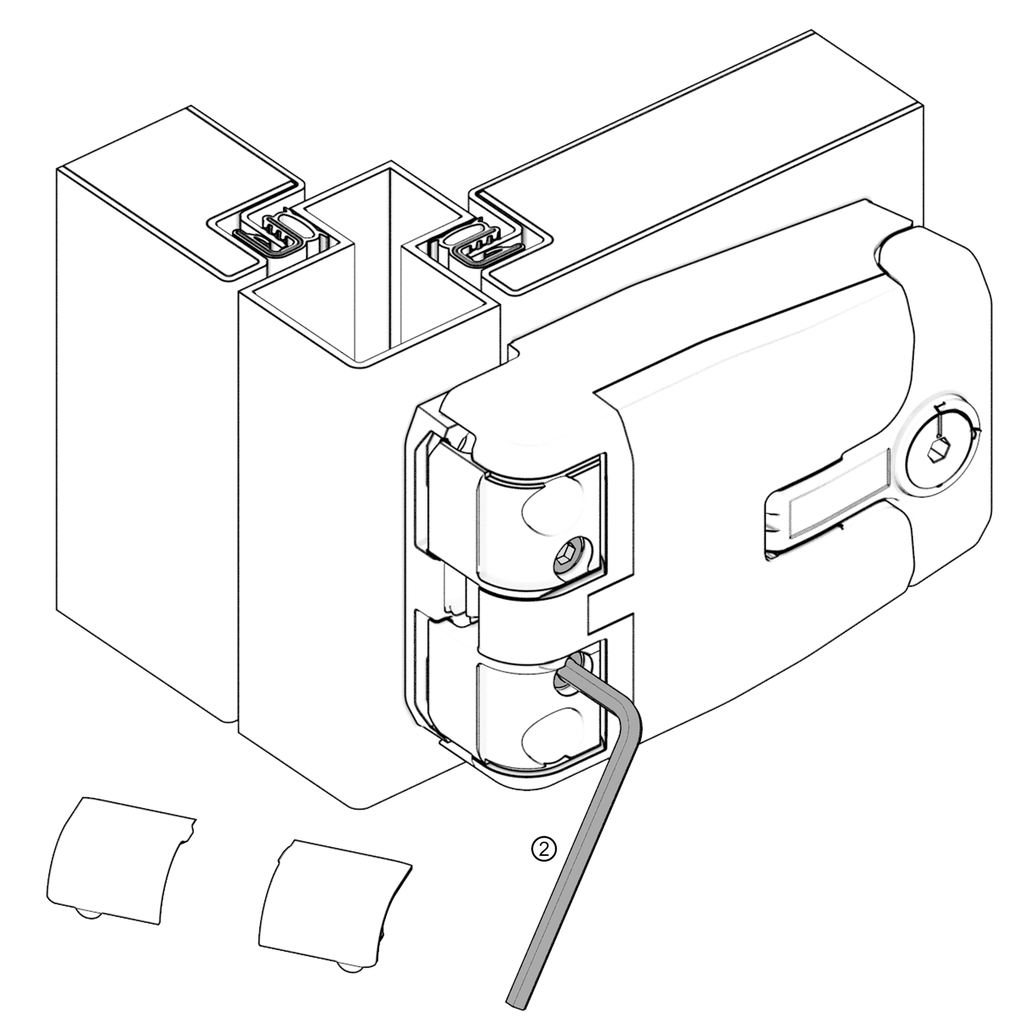

② = Screws hexagon female SW 4 for height adjustment; compression adjustable on frame part
③ = View without screw covers
④ = Cut out front
⑤ = Cut out back
