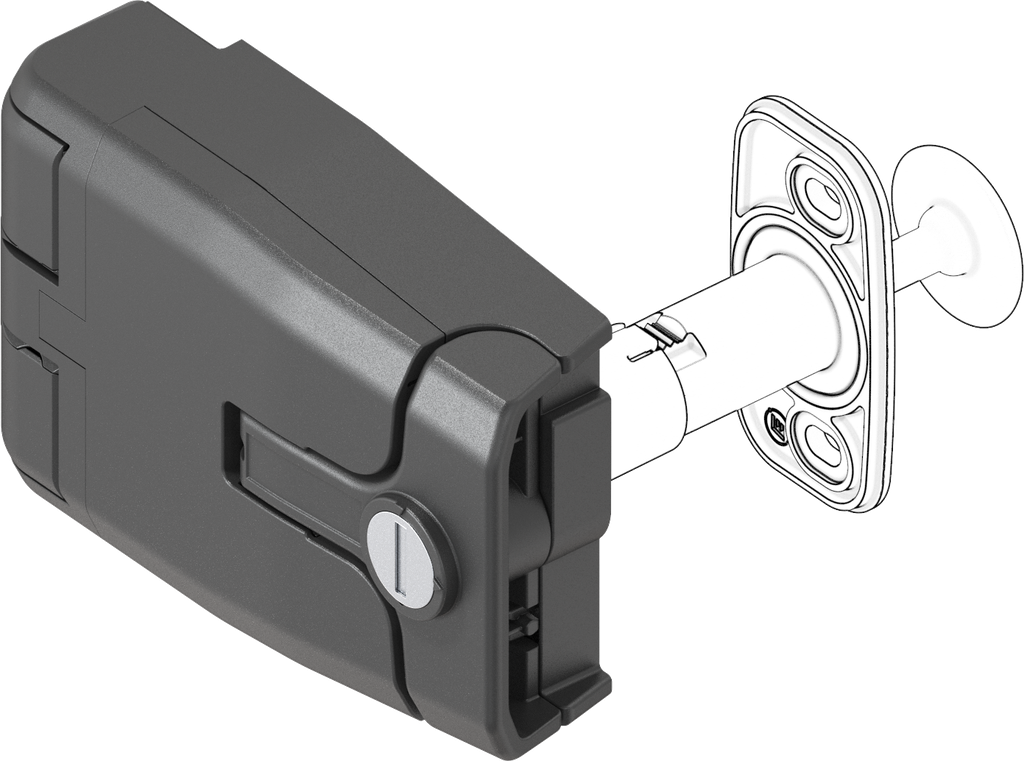

Verschluss-Scharnier mit Druckentlastung Rundzylinder Schließung 9081, Polyamid GF schwarz; 1091-U195

• The contact pressure of the closed door can be adjusted by 3 mm during operation
• Due to the favourable centre of rotation of the handle a compression of the seal of 5 mm is possible with low opening and closing force
• The door / panel can be removed by unlatching the handles on both sides
• 3D adjustable (tolerance compensation)
• Latch-Hinge can be mounted as one piece with the door / panel in place
• Right or left hinged
• Hinge 180° opening angle
• Patented
• ATEX version available on request

Use latch-hinge with pressure relief 1x per locking side

① = Centre of rotation
② = Screws hexagon female SW 4 for height adjustment; compression adjustable on frame part
③ = View without screw covers
④ = Cut out front
⑤ = Cut out back
